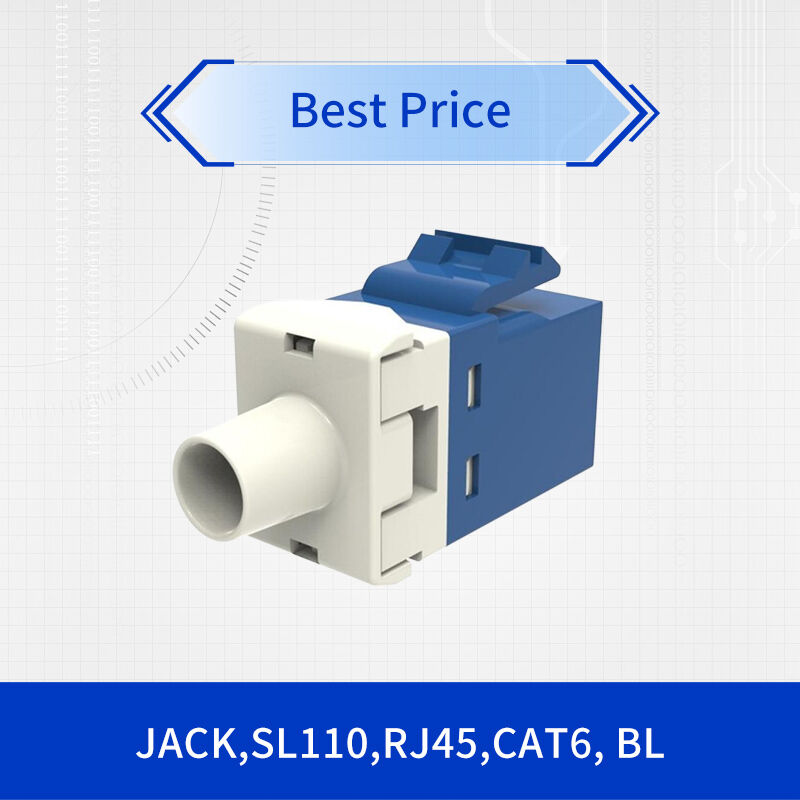

CommScope NETCONNECT SL110-6-CN-BL Category 6 Modular Jack with RJ45 Connectivity and IEEE 802.3bt PoE Type 4 Support

The CommScope NETCONNECT SL110-6-CN-BL represents a high-performance Category 6 modular jack designed for reliable network connectivity in commercial environments. This RJ45 modular jack delivers exceptional transmission performance while supporting advanced Power over Ethernet applications. The distinctive blue housing provides easy identification during installation and maintenance operations.

This Category 6 modular jack features an inverted jack face design that ensures optimal performance and reliable connections. As part of the SL Series, this modular jack is engineered for compatibility with SL Series faceplates and panels, providing a comprehensive connectivity solution. The RJ45 interface supports both T568A and T568B wiring configurations, offering flexibility for various installation requirements.

This Category 6 modular jack delivers exceptional electrical performance with contact resistance maintained below 100 mOhm and variation under 20 mOhm. The RJ45 modular jack supports current ratings of 1.5A at 20°C and features dielectric withstand voltage of 1,500 Vac between conductive surfaces. With insulation resistance exceeding 500 mOhm, this modular jack ensures reliable signal transmission in demanding network environments.

The SL Series modular jack is engineered for high-density applications while maintaining consistent performance across multiple termination cycles. The inverted jack face design provides superior protection against dust and debris, enhancing long-term reliability. This Category 6 modular jack is ideal for both data center and office environment deployments.

The SL110-6-CN-BL modular jack fully supports IEEE 802.3bt Type 4 Power over Ethernet applications, delivering up to 90W of power to connected devices. This RJ45 modular jack maintains exceptional performance through more than 3,000 mating cycles under full PoE load, ensuring long-term reliability for high-power applications such as access points, security cameras, and LED lighting systems.

The modular jack complies with unmating under electrical load requirements prescribed by IEC 60512-99-002, providing safe operation during connection and disconnection procedures. This makes the Category 6 modular jack suitable for environments where frequent equipment changes are necessary.

This modular jack features insulation displacement contact (IDC) termination that supports both solid (24-22 AWG) and stranded (26-24 AWG) conductors. The recommended JTT termination tool ensures consistent and reliable connections through more than 200 termination cycles. The modular jack accommodates cable diameters up to 5.8 mm and insulated conductor diameters up to 1.45 mm.

As an SL Series modular jack, it is designed for seamless integration with SL Series faceplates and panels. The recommended panel cutout of 14.78 × 20.07 mm and panel thickness of 1.6 mm ensure proper fit and secure installation. The included strain relief cap provides additional cable protection and strain relief for permanent installations.

CommScope's SL110-6-CN-BL modular jack meets rigorous international standards including ANSI/TIA-568.2-D and ISO/IEC 11801 Class E. The product carries UL and cUL safety certifications along with UL 94 V-0 flammability rating for enhanced fire safety. Environmental compliance includes RoHS, China-RoHS, UK-RoHS, and REACH-SVHC requirements.

The modular jack construction utilizes high-quality PC+ABS material for the housing and gold-plated beryllium copper for the contacts, ensuring durability and reliable electrical performance. The plug retention force exceeds 50N (11.24 lbf), providing secure connections in high-vibration environments.

This modular jack fully supports IEEE 802.3bt Type 4 PoE applications, delivering up to 90W of power while maintaining data transmission integrity through more than 3,000 mating cycles.

The RJ45 modular jack supports both T568A and T568B wiring schemes, providing flexibility for different installation preferences and compatibility with existing infrastructure.

This modular jack is rated for a minimum of 200 termination cycles, ensuring long-term reliability for maintenance and reconfiguration activities.

Yes, the recommended JTT termination tool ensures proper IDC termination and consistent performance across multiple installation cycles.

This Category 6 modular jack is ideal for commercial offices, data centers, educational facilities, and healthcare environments requiring reliable connectivity with PoE support.

1. Use JTT termination tool for consistent and reliable connections
2. Maintain proper cable bend radius during installation
3. Ensure conductors are properly seated in IDC terminals
4. Verify T568A or T568B wiring scheme consistency throughout installation
5. Install strain relief cap for permanent cable retention
6. Follow local electrical codes and manufacturer specifications
7. Test all connections for proper performance and PoE capability
