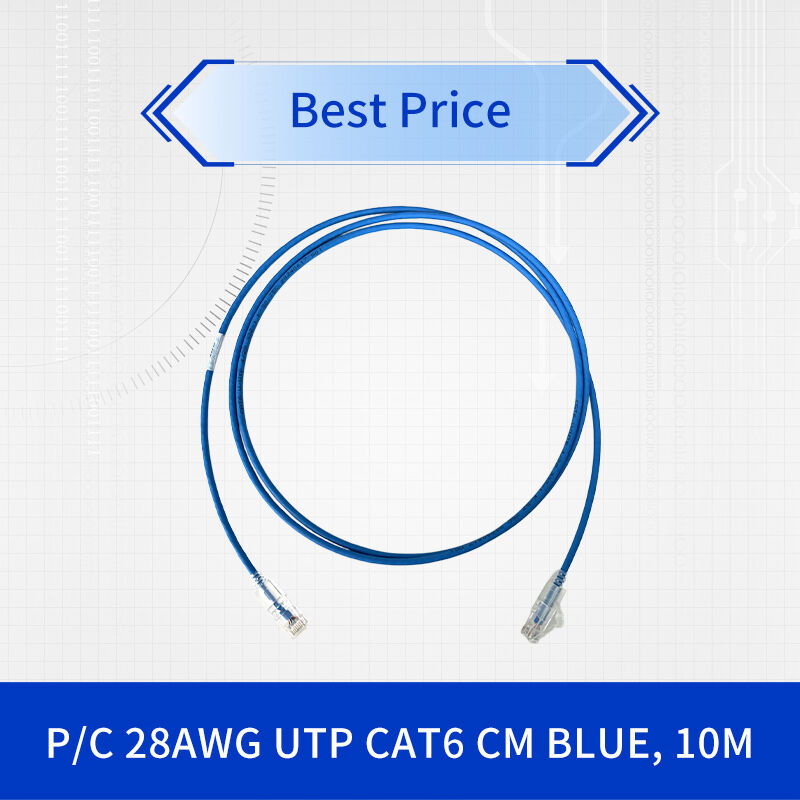

10M UTP CAT6 CM Patch Cord with 250MHz Bandwidth for 10GBASE-T Applications
পণ্যের বিবরণ:
| পরিচিতিমুলক নাম: | commscope |
| মডেল নম্বার: | 760257420 |
| নথি: | PC 28AWG UTP CAT6 CM CN new...ew.pdf |
|
বিস্তারিত তথ্য |
|||
| এএনএসআই/টিআইএ ক্লাস: | 6 | কেবল টাইপ: | U/UTP (আনশিল্ডেড) |
|---|---|---|---|
| কন্ডাক্টরের প্রকার: | মাল্টি-স্ট্র্যান্ড কর্ড | ইন্টারফেস, সংযোগকারী A: | RJ45 প্লাগ |
| সংযোগকারী, সংযোগকারী বি: | RJ45 প্লাগ | চামড়ার রঙ: | এতে উপলব্ধ: কালো, লাল, কমলা, ধূসর, হলুদ, নীল, সবুজ, সাদা |
| দৈর্ঘ্য: | 3 মি | ||
| বিশেষভাবে তুলে ধরা: | 10M Patch Cord,250MHz Bandwidth Ethernet Cable,10GBASE-T Applications RJ45 Cable |
||
পণ্যের বর্ণনা
High-Density Networking Solution
Engineered for modern data-intensive environments, the CommScope NETCONNECT 28AWG UTP CAT6 CM represents the evolution of structured cabling. This advanced Category 6 superfine Ethernet cable delivers exceptional performance in space-constrained applications while maintaining full compliance with industry standards.
Primary Benefits:
- Ultra-slim 28AWG construction optimizes rack space utilization
- Superior electrical characteristics ensure reliable Gigabit Ethernet transmission
- CM-rated jacket meets commercial building code requirements
- Color-coded options streamline network management and maintenance
Design & Construction Features
This innovative UTP CAT6 CM cable incorporates several advanced design elements:
| Feature | Benefit |
|---|---|
| 28 AWG Stranded Copper Conductors | Enhanced flexibility and durability while reducing cable diameter |
| Precision Twisted Pairs | Optimized twist rates minimize crosstalk and electromagnetic interference |
| CM-Rated PVC Jacket | Suitable for commercial installations with appropriate fire safety ratings |
| Gold-Plated RJ45 Contacts | Superior corrosion resistance and reliable connectivity |
Performance & Compliance
This superfine Cat6 patch cord is designed to exceed the demanding requirements of modern networking environments. The cable maintains precise impedance control and minimal attenuation across the entire 250MHz bandwidth, ensuring robust performance for 10GBASE-T applications at reduced distances.
Compliance certifications include:
- ANSI/TIA-568-C.2 Category 6
- ISO/IEC 11801 Class E
- CM rating per NEC articles
- RoHS compliance for environmental safety
Ideal Deployment Scenarios
Data Centers
Maximize port utilization in high-density switch configurations with reduced cable congestion.
Office Networks
Streamline cable management in telecommunications rooms and workstation areas.
AV Systems
Deliver reliable HD video and audio transmission in professional installations.
Detailed Specifications
| Attribute | Value |
|---|---|
| Product Type | 28AWG UTP CAT6 CM Patch Cord |
| Conductor Size | 28 American Wire Gauge |
| Cable Construction | Unshielded Twisted Pair (U/UTP) |
| Outer Diameter | 4.2 millimeters |
| Jacket Material | Polyvinyl Chloride (CM Rated) |
| Connector Type | 8P8C RJ45 Plugs |
| Contact Plating | 50μ" Gold |
| Performance Category | Category 6 (250 MHz) |
Value Proposition
This ultra-thin Cat6 Ethernet cable delivers significant advantages over conventional Category 6 solutions:
- Space Efficiency: 28AWG design enables up to 30% more cables in the same pathway compared to standard 24AWG Cat6 cables
- Improved Thermal Management: Reduced cable mass enhances airflow in enclosed spaces
- Installation Flexibility: Superior bend radius facilitates routing in constrained areas
- Future-Proof Performance: Supports emerging applications requiring high bandwidth
Support & Services
CommScope provides comprehensive technical support for the NETCONNECT 28AWG UTP CAT6 CM product line. Our global network of certified engineers offers design consultation, installation guidance, and troubleshooting assistance. Custom configuration services are available for large-scale deployments.
Installation Guidelines
- Maintain minimum bend radius of 1 inch (25mm) during installation
- Use appropriate cable management accessories to prevent stress on connectors
- Avoid running parallel to power cables where possible to minimize interference
- Test each connection to verify Category 6 performance standards are met
- Follow manufacturer recommendations for maximum pulling tension
