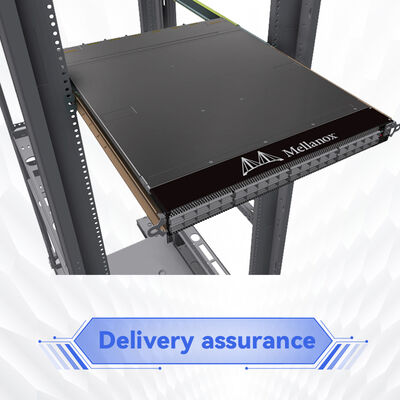

NVIDIA Quantum-2 MQM9700-NS2R 64-Port 400Gb/s Managed InfiniBand Switch with Reverse Airflow (C2P)
পণ্যের বিবরণ:
| পরিচিতিমুলক নাম: | Mellanox |
| মডেল নম্বার: | এমকিউএম 9700-এনএস 2 এফ (920-9b210-00FN-0M0) |
| নথি: | MQM9700 series.pdf |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসি |
|---|---|
| মূল্য: | Negotiate |
| প্যাকেজিং বিবরণ: | বাইরের বাক্স |
| ডেলিভারি সময়: | জায় উপর ভিত্তি করে |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | প্রকল্প/ব্যাচ দ্বারা সরবরাহ |
|
বিস্তারিত তথ্য |
|||
| মডেল নম্বর: | এমকিউএম 9700-এনএস 2 এফ (920-9b210-00FN-0M0) | ব্র্যান্ড: | মেলানক্স |
|---|---|---|---|
| আপলিংক সংযোগ: | 400 জিবিপিএস | নাম: | InfiniBand MQM9700-NS2F Mellanox নেটওয়ার্ক স্যুইচ 1U NDR 400Gb/S সার্ভারের জন্য |
| কীওয়ার্ড: | মেলানক্স নেটওয়ার্ক সুইচ | পোর্ট কনফিগারেশন: | 64x 400g, 32x ওএসএফপি |
| বিশেষভাবে তুলে ধরা: | NVIDIA Quantum-2 InfiniBand switch,400Gb/s managed network switch,64-port InfiniBand switch with reverse airflow |
||
পণ্যের বর্ণনা

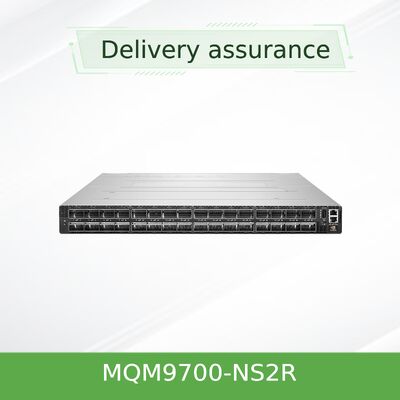

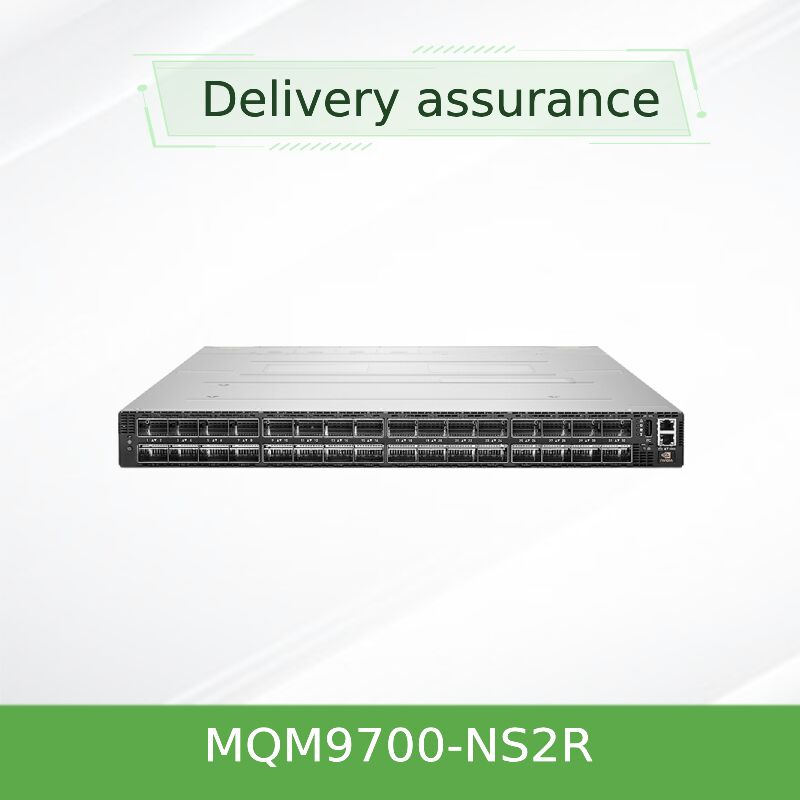

NVIDIA Quantum-2 MQM9700-NS2R 64-Port 400Gb/s Managed InfiniBand Switch
Fully managed NDR switch with reverse airflow (connector-to-power) and integrated subnet management. Designed for extreme-scale AI and HPC environments, delivering 64 non-blocking ports of 400Gb/s InfiniBand in a compact 1U chassis.
Key Features
- 64 ports of 400Gb/s NDR InfiniBand in 1U non-blocking architecture
- Double-density 200Gb/s mode supporting up to 128 ports via port-split technology
- Integrated subnet manager for up to 2,000 nodes out-of-the-box

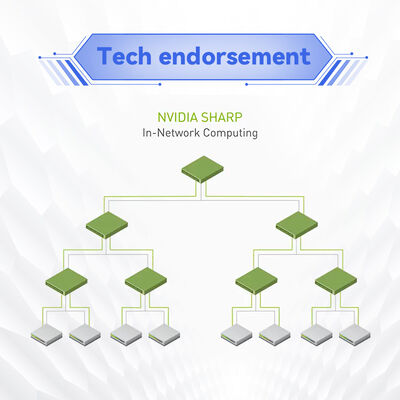

- SHARPv3 in-network computing with 32x higher AI acceleration
- Reverse airflow (C2P) for data centers requiring rear-to-front cooling
- 1+1 redundant hot-swappable power supplies and fan units
- Backward compatible with HDR, EDR, and FDR InfiniBand generations
64
400Gb/s Ports
51.2 Tb/s
Bisection Bandwidth
1U
Rack Height
SHARPv3
AI Acceleration
C2P
Reverse Airflow
2000
Nodes Managed
Technical Specifications

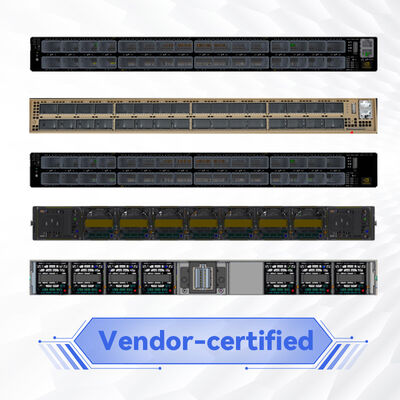

| Ports | 32 OSFP connectors supporting 64 ports of 400Gb/s InfiniBand (NDR) or 128 ports of 200Gb/s |
| Aggregate Throughput | 51.2 Tb/s bidirectional, non-blocking |
| Packet Forwarding Capacity | Over 66.5 billion packets per second (BPPS) |
| Management | Fully managed with on-board Subnet Manager (supports up to 2000 nodes) |
| Power Supply | 1+1 redundant, hot-swappable, 200-240Vac, 80 Plus Gold |
| Cooling / Airflow | Reverse airflow: Connector-to-Power (C2P), hot-swappable fan units |
| Dimensions | 1.7 in (43.6mm) x 17.0 in (438mm) x 26.0 in (660.4mm) |
| Weight | Approx. 14.5 kg |
| Operating Temperature | 0°C to 40°C |
Typical Deployments
- AI & Machine Learning Clusters for large language model training and inference
- High-Performance Computing (HPC) research simulations and modeling
- Hyperscale Data Centers with spine-leaf architectures
- Enterprise Cloud & Finance for low-latency trading systems
- Government & Education supercomputing centers
Compatibility

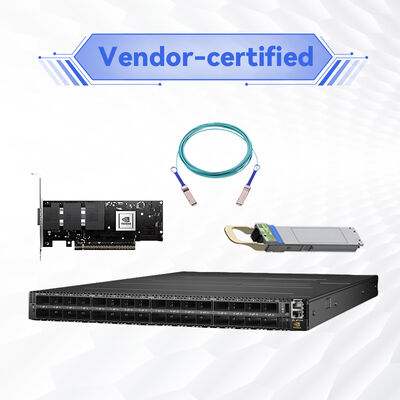

Fully interoperable with NVIDIA InfiniBand ecosystem including ConnectX-6/7 adapters, LinkX cables, and Quantum-2 series switches. Backwards compatible with HDR, EDR, and FDR devices. Supports major Linux distributions and Windows Server.
Buyer Checklist
- Verify required airflow direction: C2P matches your rack's cold aisle placement
- On-board subnet manager ready for up to 2,000 nodes
- Plan cabling: 400G OSFP to OSFP or split to 2x200G
- Confirm power input: 200-240Vac with redundant feeds
- For large deployments, request topology design review
Important Notices: Verify C2P airflow orientation matches your rack configuration. Use only NVIDIA-qualified optical modules and cables. Operating altitude up to 3050m; temperature not to exceed 40°C.
