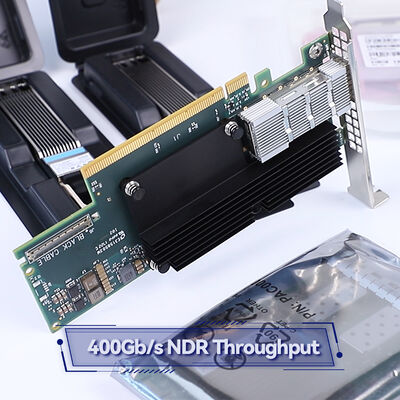

NVIDIA ConnectX‑7 MCX755106AS‑HEAT Dual‑Port 200GbE / NDR200 VPI Smart NIC with PCIe 5.0 x16, Socket Direct Ready & Secure Boot
পণ্যের বিবরণ:
| পরিচিতিমুলক নাম: | Mellanox |
| মডেল নম্বার: | এমসিএক্স 755106 এএস-হিট (900-9x7AH-0078-dtz) |
| নথি: | Connectx-7 infiniband.pdf |
প্রদান:
| ন্যূনতম চাহিদার পরিমাণ: | 1 পিসিএস |
|---|---|
| মূল্য: | Negotiate |
| প্যাকেজিং বিবরণ: | বাইরের বাক্স |
| ডেলিভারি সময়: | জায় উপর ভিত্তি করে |
| পরিশোধের শর্ত: | টি/টি |
| যোগানের ক্ষমতা: | প্রকল্প/ব্যাচ দ্বারা সরবরাহ |
|
বিস্তারিত তথ্য |
|||
| মডেল নং: | এমসিএক্স 755106 এএস-হিট (900-9x7AH-0078-dtz) | বন্দর: | 2-পোর্ট |
|---|---|---|---|
| প্রযুক্তি: | ইনফিনিব্যান্ড | ইন্টারফেসের ধরন: | OSFP56 |
| স্পেসিফিকেশন: | 16.7 সেমি x 6.9 সেমি | উৎপত্তি: | ভারত / ইস্রায়েল / চীন |
| সংক্রমণ হার: | 200 জিবিই | হোস্ট ইন্টারফেস: | JEN3 x16 |
| বিশেষভাবে তুলে ধরা: | Nvidia ConnectX-7 200GbE Smart NIC,NDR200 VPI PCIe 5.0 network card,dual-port Smart NIC with Secure Boot |
||
পণ্যের বর্ণনা
NVIDIA ConnectX‑7 MCX755106AS‑HEAT Dual‑Port 200GbE / NDR200 VPI Smart NIC
High-performance dual-port RDMA adapter supporting both InfiniBand (NDR200) and Ethernet (200GbE) protocols. Delivers ultra-low latency, hardware-based security offload, and advanced in-network computing engines for AI, HPC, and enterprise data centers.
Product Overview
The NVIDIA ConnectX-7 MCX755106AS-HEAT is a member of the ConnectX-7 family of RDMA network adapters, designed to meet the most demanding workloads—from AI and scientific computing to hyperscale cloud and enterprise IT. This VPI (Virtual Protocol Interconnect) adapter provides dual-port QSFP112 connectivity with support for both InfiniBand and Ethernet protocols, offering flexibility for diverse data center environments.
Leveraging PCI Express 5.0 x16 host interface, the MCX755106AS-HEAT delivers up to 200Gb/s bandwidth per port and is optimized for RDMA over Converged Ethernet (RoCE) and InfiniBand. Its Socket Direct-ready architecture enables direct CPU-to-network access in dual-socket servers, reducing latency and improving efficiency.
Key Specifications
| Model | MCX755106AS-HEAT |
|---|---|
| Form Factor | PCIe Half Height, Half Length (HHHL) - 2.71 in x 6.6 in |
| Ports | Dual-port QSFP112 (supports both InfiniBand and Ethernet) |
| Data Rates | InfiniBand NDR200/HDR/HDR100/EDR/FDR/SDR; Ethernet 200/100/50/25/10 Gb/s |
| Host Interface | PCIe 5.0 x16 (compatible with Gen 4.0 and 3.0) |
| Security | Secure Boot with hardware root-of-trust; Crypto functions disabled on this SKU |
| Socket Direct Ready | Requires optional PCIe Auxiliary Card Kit (MTMK9100-T15/T25/T35) for dual-socket servers |
Key Features
- Dual-Protocol VPI: InfiniBand (NDR200) and Ethernet (200GbE) on the same adapter
- RDMA & RoCE Support: Hardware-based reliable transport with RoCE for efficient data movement
- In-Network Computing: Collective operations offload, MPI tag matching, and SHARP support
- Hardware Security Offloads: IPsec, MACsec, and TLS encryption/decryption (inline hardware engines)
- GPUDirect Storage & RDMA: Accelerated data paths for GPU and storage workloads
- Advanced Timing: IEEE 1588v2 PTP with 12ns accuracy, SyncE, and PPS I/O
- Virtualization & Overlay Offload: SR-IOV, VirtIO acceleration, VXLAN/NVGRE/GENEVE offloads
- Socket Direct Architecture: Split PCIe x32 into two x16 buses for direct CPU access in dual-socket systems
Advanced Technology
The ConnectX-7 MCX755106AS-HEAT integrates NVIDIA's advanced networking silicon to deliver line-rate performance with low CPU overhead. Key technologies include:
- ASAP2 (Accelerated Switch and Packet Processing): Offloads SDN and virtual network functions for scalable overlay networking
- In-Network Computing Engines: Offloads collective communication and rendezvous protocol to the adapter, freeing CPU cycles
- Zero-Touch RoCE: Simplifies RoCE deployment with automatic configuration and congestion control
- Multi-Host Support: Allows up to 4 hosts to share a single ConnectX-7 adapter (with PCIe switch)
- NVMe-oF Target Offload: Hardware offload for NVMe over Fabrics, including TCP and RDMA transports
This adapter is optimized for HPC software libraries including NVIDIA HPC-X, UCX, NCCL, OpenMPI, MVAPICH, and MPICH, ensuring seamless integration in high-performance clusters.
Typical Applications
- AI and Machine Learning Clusters: High-bandwidth, low-latency interconnect for GPU-accelerated training and inference
- Scientific Computing & HPC: InfiniBand-based supercomputing with MPI, SHARP, and GPUDirect Storage
- Hyperscale Data Centers: 200GbE Ethernet fabrics with RoCE for cloud-native applications and storage disaggregation
- Enterprise Storage Systems: NVMe-oF target offload and RDMA-based storage protocols
- Telecom & Edge: Precision timing for 5G and time-sensitive infrastructure
Compatibility Matrix
| Host Interface | PCIe 5.0 x16 (32 GT/s), PCIe 4.0 x16, PCIe 3.0 x16 |
|---|---|
| Operating Systems | RHEL 9.x, Ubuntu 20.04/22.04 LTS, Windows Server 2019/2022, VMware ESXi 7.0/8.0 |
| InfiniBand Speeds | NDR200 (200Gb/s), HDR (200Gb/s), HDR100, EDR, FDR, SDR |
| Ethernet Speeds | 200GbE, 100GbE, 50GbE, 25GbE, 10GbE |
| Ports / Cables | Dual QSFP112 (Supports QSFP56, QSFP28 with break-out cables) |
| Socket Direct Kit | MTMK9100-T15 (150mm), MTMK9100-T25 (250mm), MTMK9100-T35 (350mm) harnesses |
Technical Specifications
| Product Model | MCX755106AS-HEAT |
|---|---|
| Brand | NVIDIA (Mellanox) |
| Form Factor | PCIe Half Height, Half Length (HHHL) - 68.90mm x 167.65mm |
| Protocols | InfiniBand (VPI) and Ethernet |
| RDMA | Yes (InfiniBand and RoCE) |
| Virtualization | SR-IOV, VirtIO, overlay offload (VXLAN, NVGRE, GENEVE) |
| Security Offloads | IPsec, MACsec, TLS (inline hardware) |
| Storage Offloads | NVMe-oF Target, T10-DIF, SRP, iSER, NFS RDMA, SMB Direct |
| Timing & Sync | IEEE 1588v2 PTP (12ns accuracy), SyncE, PPS I/O |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Regulatory | CB / cTUVus / CE; EMC: CE / FCC / VCCI / ICES / RCM / KC; RoHS Compliant |
Selection Guide
When choosing the ConnectX-7 MCX755106AS-HEAT, consider the following options and accessories:
- Socket Direct Kit: For dual-socket servers, select the appropriate PCIe Auxiliary Connection Card and harness length
- Cables & Transceivers: Use QSFP112 compatible cables or optical modules for 200GbE/NDR200
- Bracket Options: The card ships with both tall and short brackets to fit various chassis
Key Advantages
- Unmatched Flexibility: Single adapter supports both InfiniBand and Ethernet, reducing inventory complexity
- High Performance per Watt: Efficient hardware offloads reduce CPU utilization and power consumption
- Future-Ready: PCIe 5.0 interface and 200Gb/s speeds provide headroom for growing data demands
- Security Built-In: Secure boot, hardware root-of-trust, and inline encryption protect against firmware attacks
- Simplified Management: Zero-Touch RoCE and in-box drivers reduce deployment time
Frequently Asked Questions
What is the difference between MCX755106AS-HEAT and MCX755106AC-HEAT?
The "AS" variant (MCX755106AS-HEAT) has crypto functions disabled but includes secure boot, while the "AC" variant has both crypto enabled and secure boot. Choose AS for environments where encryption offload is not required, or for regulatory compliance reasons.
Is the PCIe Auxiliary Card Kit required?
Only if you plan to use the Socket Direct feature in a dual-socket server. The card can operate as a standard PCIe x16 adapter without the kit, utilizing a single x16 slot.
What operating systems are supported?
In-box drivers are available for Linux (RHEL, Ubuntu), Windows Server, VMware ESXi, and Kubernetes. Refer to the NVIDIA ConnectX-7 user manual for specific versions.
Installation Precautions
- Ensure the server is powered off when installing the adapter
- Use proper ESD protection (ground strap) to avoid electrostatic damage
- Ensure adequate airflow around the card; do not block ventilation holes
- Support cable weight to prevent strain on the ports
- When using Socket Direct, follow the color-coded harness connections to avoid misrouting
About Hong Kong Starsurge Group
Hong Kong Starsurge Group Co., Limited is a technology-driven provider of network hardware, IT services, and system integration solutions. Founded in 2008, the company serves customers worldwide with products including network switches, NICs, wireless access points, controllers, cables, and related networking equipment.
We are an authorized NVIDIA (Mellanox) partner and provide genuine, factory-sealed products with full manufacturer warranty.
Buyer Checklist
- Confirm your server has an available PCIe 5.0 or 4.0 x16 slot
- Determine if Socket Direct is required; if yes, order the appropriate PCIe Auxiliary Kit
- Select compatible cables/transceivers for your speed requirements
- Verify OS support for your Linux distribution or Windows version
- Confirm chassis compatibility with included bracket types
- Review security requirements for crypto offload needs
